Vestwoods 500Kw 20ft Container VESS Max series

VESW-ESS-500KW
R0.01
Pre-order
1
Product Details
Brand: 4SR Series Borehole Pump System

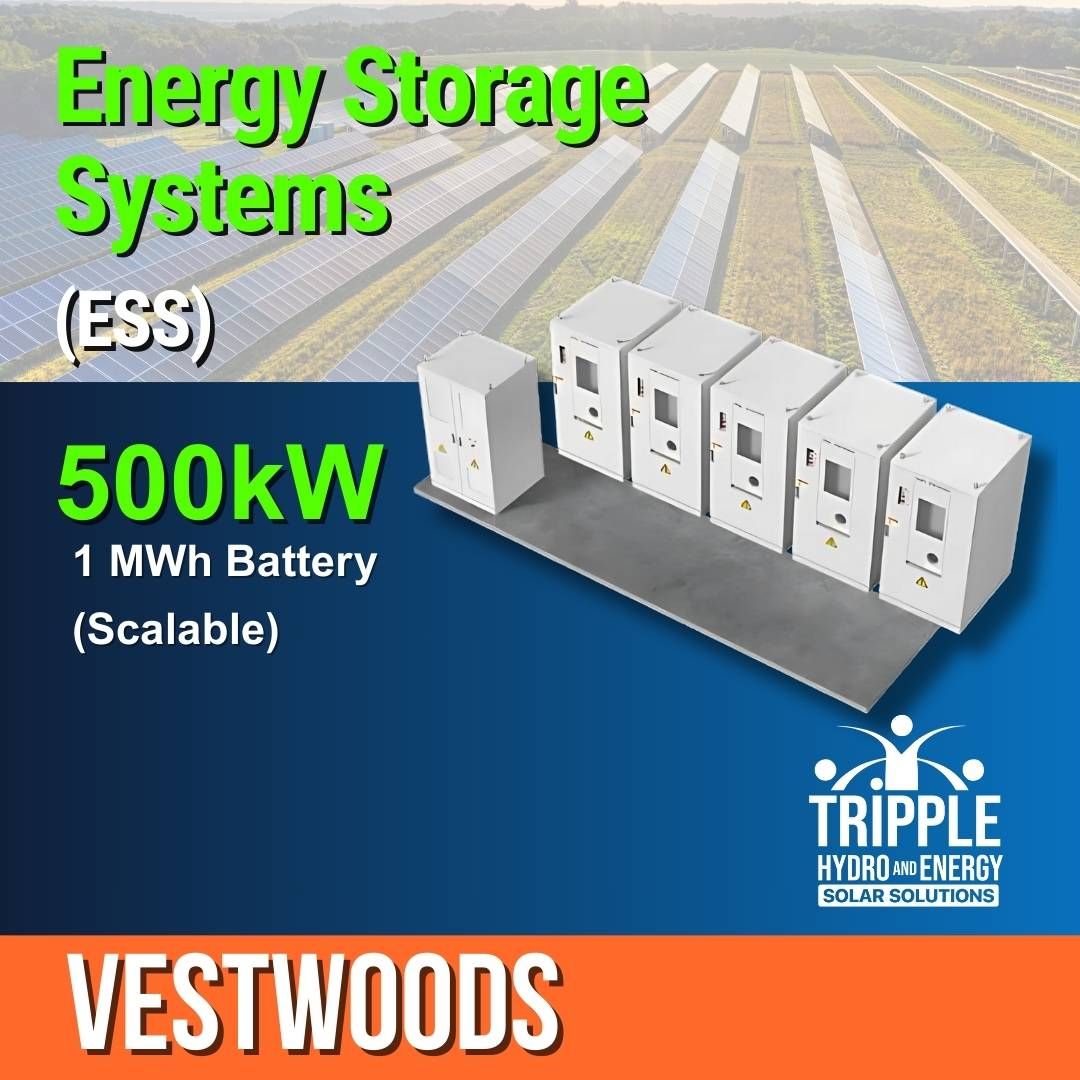

Vestwoods 20ft Container Energy Storage Solution VESS Max series (Please request quotation)

  • Flexible and can easily be expanded
  • All-in-one design for ease of installation
  • Cloud based monitoring capabilities and support



Specifications

  • Model 20ft container
  • Specification 500KW/1.1MWh

Battery Side

  • Cell Type LFP
  • Cell Capacity 280Ah
  • Module Configuration 1P16S
  • Module Capacity 14.3kWh
  • Battery Cluster String 1P208S*6
  • No. of Modules 78
  • Voltage Range 520V~759.2Vdc
  • Total Capacity 1120kWh
  • Max. Charge & Discharge Rate 0.5C/0.5C
  • Max. Charge & Discharge Current 200A/Cluster
PCS Parameter(On-Grid)
  • Nominal Power 500kW
  • Nominal Voltage AC400V
  • Nominal Frequency 50Hz/60Hz
  • Max. Charge and Discharge Power 550kW/10min
  • Nominal Current 800A
  • Power Factor >0.99(Rated Power) / ±1 lagging / leading
  • THDi <3%(Nominal Power)
  • Transformer Optional

PCS Parameter(Off-Grid)

  • Rated Power 500kW
  • Rated Voltage AC400V
  • Rated Frequency 50Hz/60Hz
  • Output Voltage Accuracy 1%
  • THDu <1%(Linear load)
System Parameter
  • Cooling Mode Air conditioning
  • Noise <68dB(1m)
  • IP IP54
  • Altitude 3000m (>2000m Derating)
  • Temperature Range – 30 °C to 50 °C
  • Humidity Range 0~95%RH
  • Output overload capacity 110% load@ 10min;120% load@1min
  • Communication Protocol Modbus RTU / Modbus TCP


DIMENTIONS (mm):

Dimensions 6058 x 2438 x 2896mm
Weight 18143.70Kg

WARRANTY:

Warranty 5 Years / 10 Years (Optional)

Terms & Conditions apply.
