Pelican1070-2L Pole Frame – (2-LARGE PANEL)

SKU SF-PEL1070-2LARGE-DOUBLE RAIL-2.1M
R3 654.00
In stock
1
Product Details

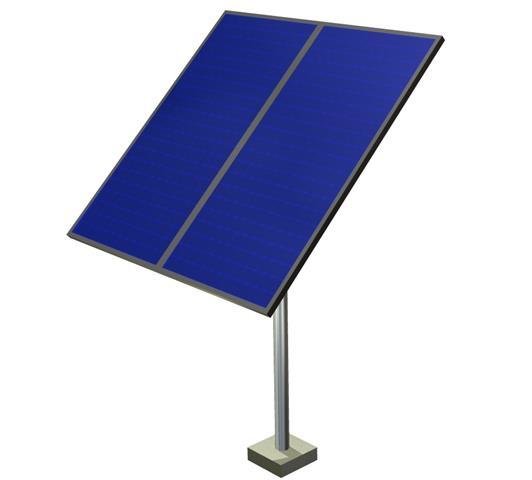

PELICAN 1070-2L POLE FRAME – 2M DOUBLE RAIL ( Fits 2 x 250 Watt – 330 Watt Panels)

“Solar is an investment – Secure it with the right Tools”

Solar Pole Frame Kit to fit any standard solar panel size ranging 50 to 330 Watt panels or any size that would fit on the specific Rail length accordingly. These high quality frame mounting structure is designed to last a lifetime. They are wind tested at 34 m/s (120 km/h), theft resistant, galvanized with aluminium rails and easy to install.

Fits a 76mm diameter galvanized pole. (Please note the pole is not included)**

All Bolts & Nuts included

Supplied with an installation diagram

SPECIFICATIONS:

  • Aluminium rails are extruded from 6063 aluminium and tempered to T6.
  • All nuts and bolt that are not in contact with the aluminium are galvanized.
  • Bolts that are in contact with aluminium are of 304 stainless steel.
  • Bracket components are either hot dip galvanized to 80 micron or electro-galvanized.
  • Bracket angle set at 30* from horizontal.
  • Shear nuts provide theft resistance.
  • Pole specification (3m x 76mm pole) concreted – 800x400x400mm

WARRANTY:

  • 10 Years Limited Warranty

DETAILED SPEC SHEET:

Download the complete printable specification sheet – Not available

ORDERING TIME FRAME:

Due to manufacturing processes the normal manufacturing time frame is 7 to 12 work days. Should any component be in short supply the time for delivery would be adjusted accordingly.
