Multi-Flow Pen120 Hybrid Solar Pump (DC & AC)

SKU P-MULTI-PEN120
R18 195.00
In stock
1
Product Details

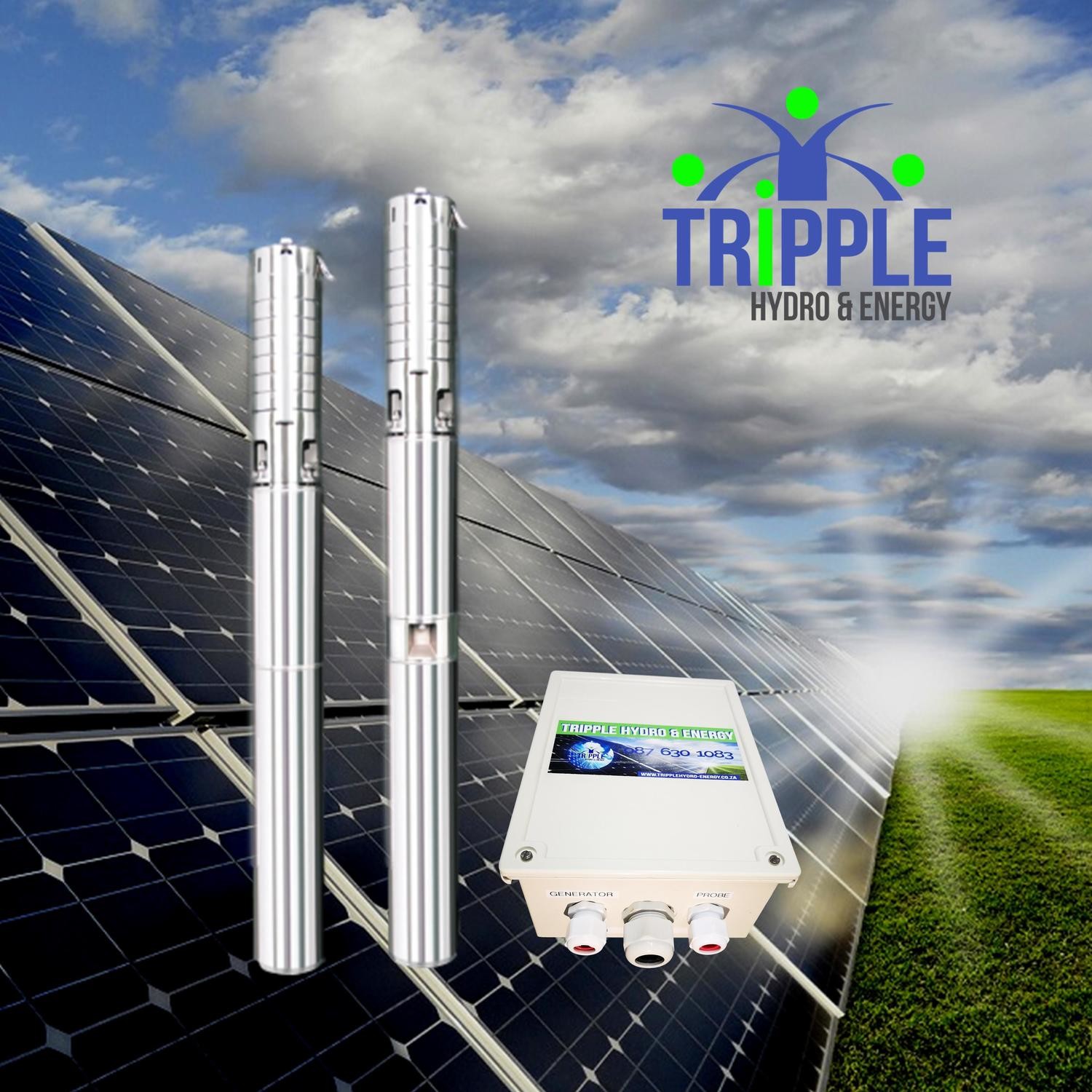

Multi-Flow Pen120 Hybrid Solar Pump

Multi-Flow AC/DC Solar Submersible Borehole Pumps are fitted with a permanent magnet, brush-less motor, which enables the efficient use of energy from a wide range of supply options. The Multi Flow Hybrid Solar Pump system offers a perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable. The motor-housing is double shielded and poses no pollution risk to drinking water. The integrated control system is built inside the motor to make it more compatible and reliable, while offering MPPT functionality, maximizing the utilization of power generated from the solar array.

* Please note: Included in the price is the pump with built-in controller and an all weather DC Disconnect Switch. The Hybrid controller for auto switching is available on request. The panel configuration is determined by the flow rate and head and is to be quoted separately.


PUMP SPECIFICATIONS:

  • Made of AISI 304 stainless steel
  • Multi Stage Impeller design – 4″
  • Minimal pump vibration and noise
  • Long service lifetime


MOTOR SPECIFICATIONS

  • Made of AISI 304 stainless steel
  • Double outer and inner shielded structure (Submersible depth 150m) – 4″
  • Internal coil made from high-temperature tolerant copper wire
  • Efficiently protecting the motor at high-temperatures – Extends motor’s lifetime
  • Water filling lubricated rotor with top / bottom graphite bearing and thrust bearing
  • Co-axial-rotation efficiently reduces motor’s vibration and noise and extend its service lifetime.
  • Built-in, integrated Variable Frequency Converter with intelligent-speed control algorithm with speed up to 6000 RPM


INTELLIGENT CONTROLLER

The intelligent controller designed for Multi-Flow Hybrid Solar pumps offers high flexibility towards power supply source and range.
  • Can be powered with either DC or AC voltage
  • MPPT & DSP technology – Intelligent parameter detection
  • Soft starting – Long system’s lifetime
  • A Special power management system can be added to the pump system to automate the power management functions and to automate the hybrid functionality. (Supplied with a DC Disconnect Switch)


PROTECTION

  • Dry-running protection
  • Over-current protection
  • Over-voltage protection
  • Overload protection
  • Phase loss protection


POWER

Supply voltage Flexibility with regards to power supply and power range, the motor can be supplied with either DC or AC voltage:
  • AC voltage range: 1 x 60 – 300 VAC,50-60Hz
  • DC voltage range: 60 – 400VDC
  • Open circuit voltage: 60-440VOC
  • Output power range: 0.37 – 3.0Kw for DC
  • Output power range: 0.37 – 2.2Kw for AC



APPLICATION

  • Watering of livestock
  • Irrigation and greenhouses
  • Game parks and game farms
  • Conservation areas
  • Surface water pumping
  • Floating pump installations for pumping water from ponds and lakes (Can be installed Horizontally)


WARRANTY

2 Years Manufacturers warranty (Terms & Conditions as per Installation Guide)


DOWNLOADABLE SPEC SHEET

Click here to download the specifications for this combo package


PUMP SIZING SERVICES

Please complete the pump sizing form to ensure the best pump option for your application

Click here – PUMP SIZING INFORMATION FORM
